High performance and stability:

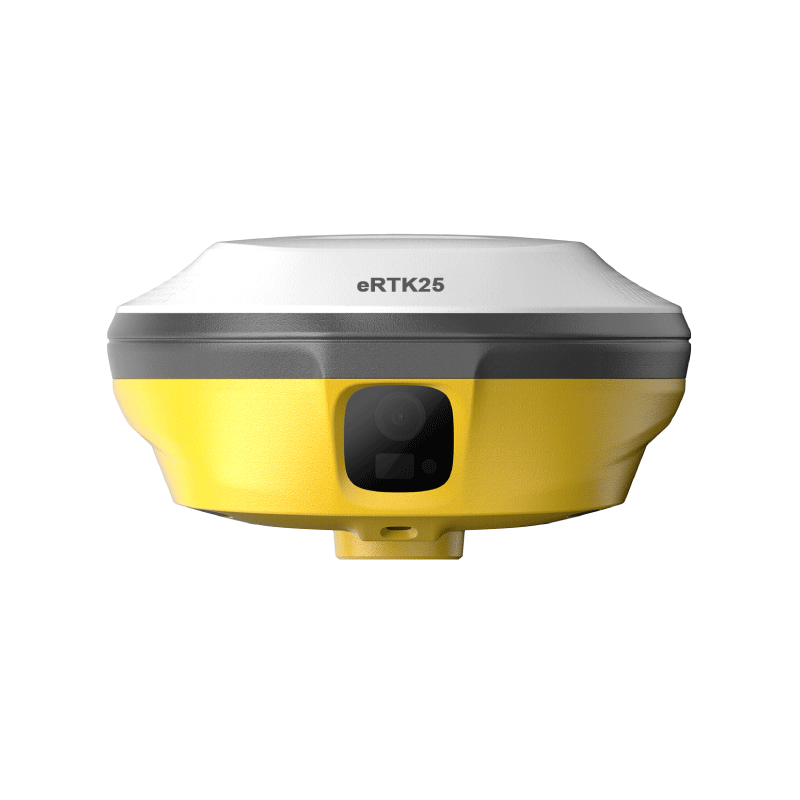

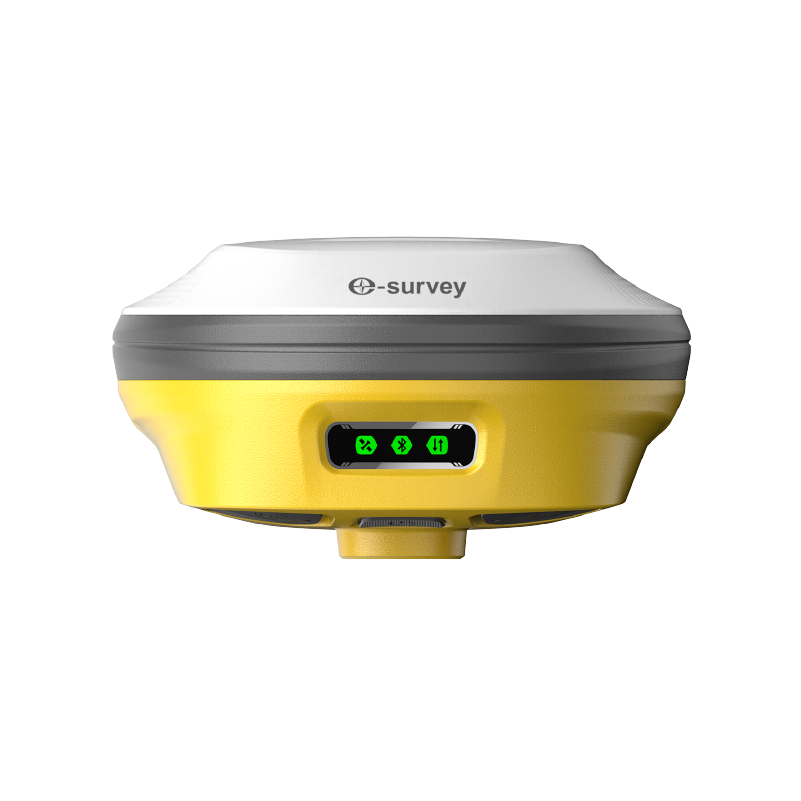

The eSurvey eRTK25 integrates laser ranging technology and AR vision stakeout, enabling robust centimeter-level positioning even in harsh or constrained settings. Its multimodal sensor fusion ensures operational adaptability across diverse scenarios, including full daylight visibility, narrow spaces, and extreme temperature ranges (-30°C to 70°C), making it ideal for industrial, construction, and geospatial applications requiring precision in dynamic environments.

Laser + CAD AR Dual-Tech Integration

No-Leveling Measurement:

Capture data while standing or moving, even with the rod tilted up to 60°.

Adapts to Complex Terrain:

Easily access confined spaces (e.g., building corners, slopes) to boost efficiency.

Dynamic Stability:

Maintains precision even if the rod shakes, as long as the tip remains stationary.

Advanced Long-Range Tx/Rx UHF Modem

Integrated with the long range UHF modem, the eRTK60 is compatible with traditional major radio protocols. The maximum communication distance can reach 10 km with 1W transmit power in urban environments.

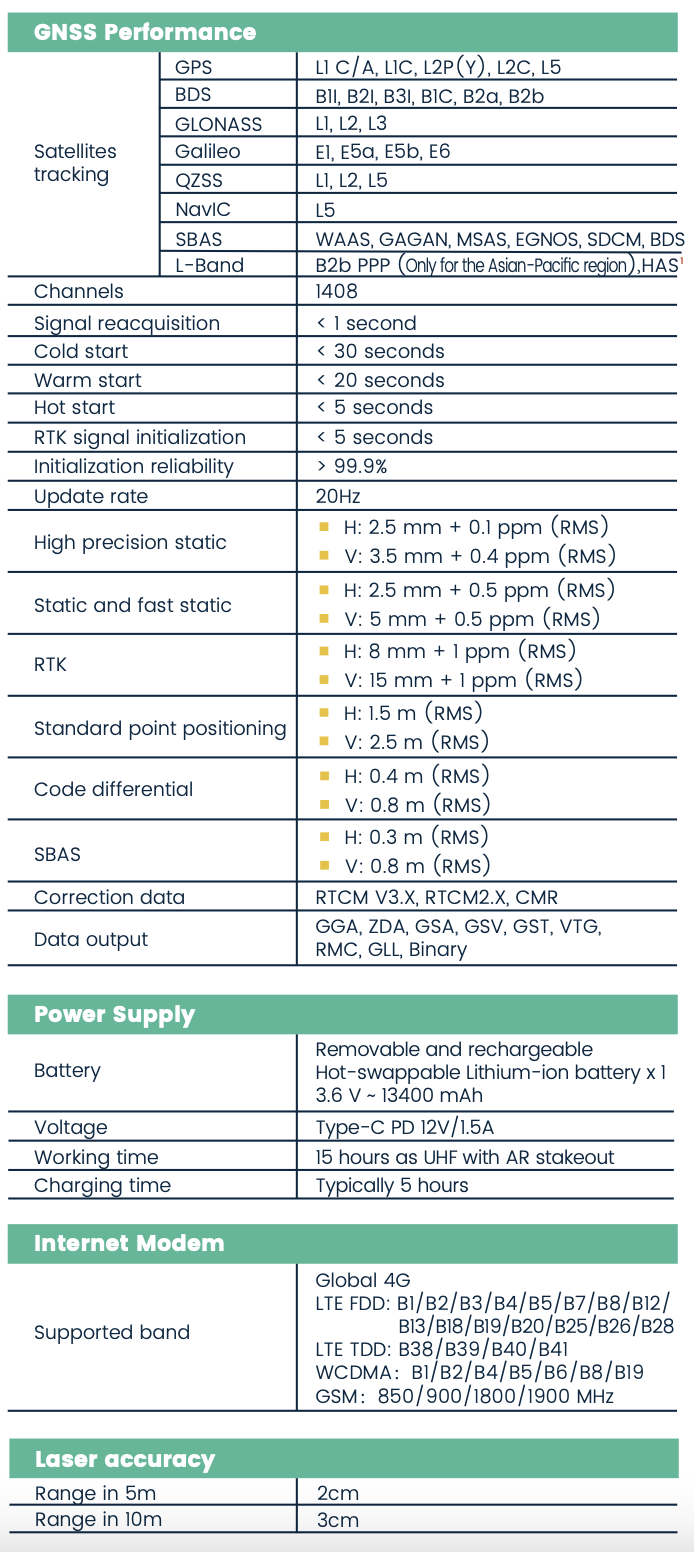

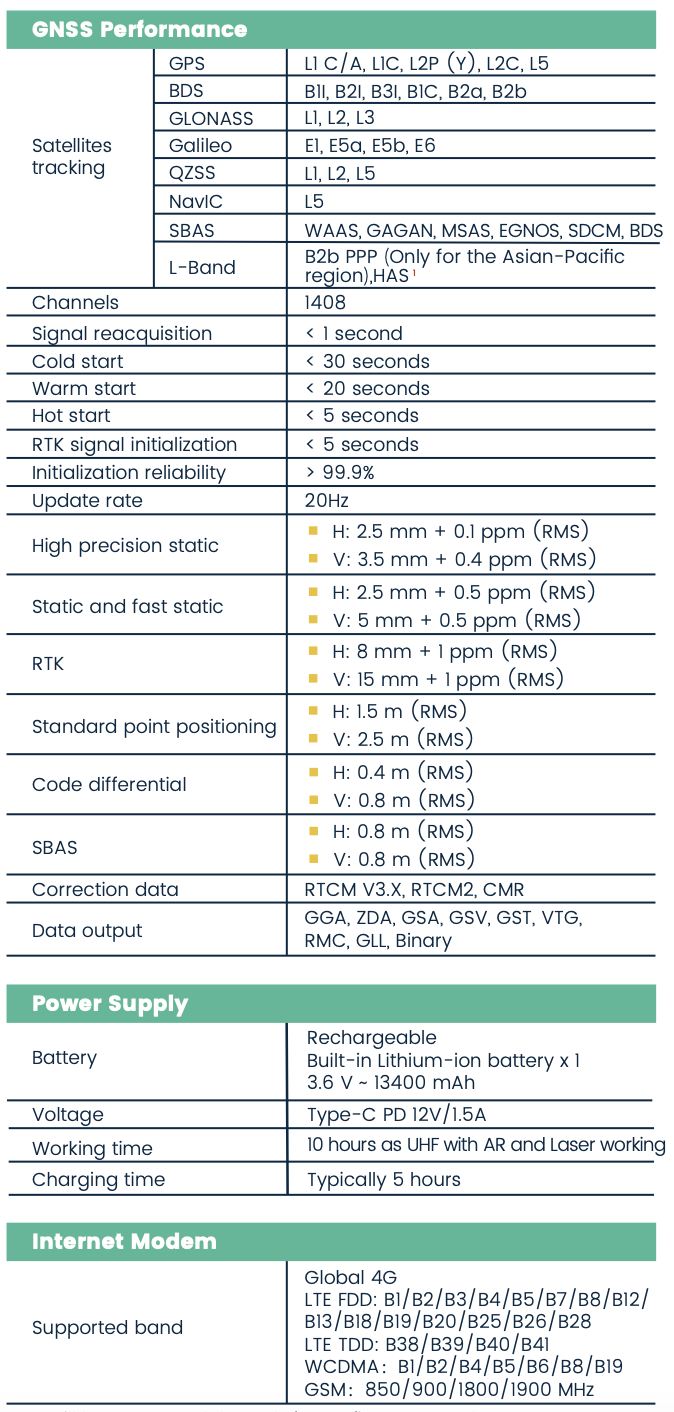

Multi-Constellation & Multi-Frequency Support

1408 GNSS Channels: Simultaneously processes signals from GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS, and L-Band, ensuring stable centimeter-level accuracy for global positioning.
