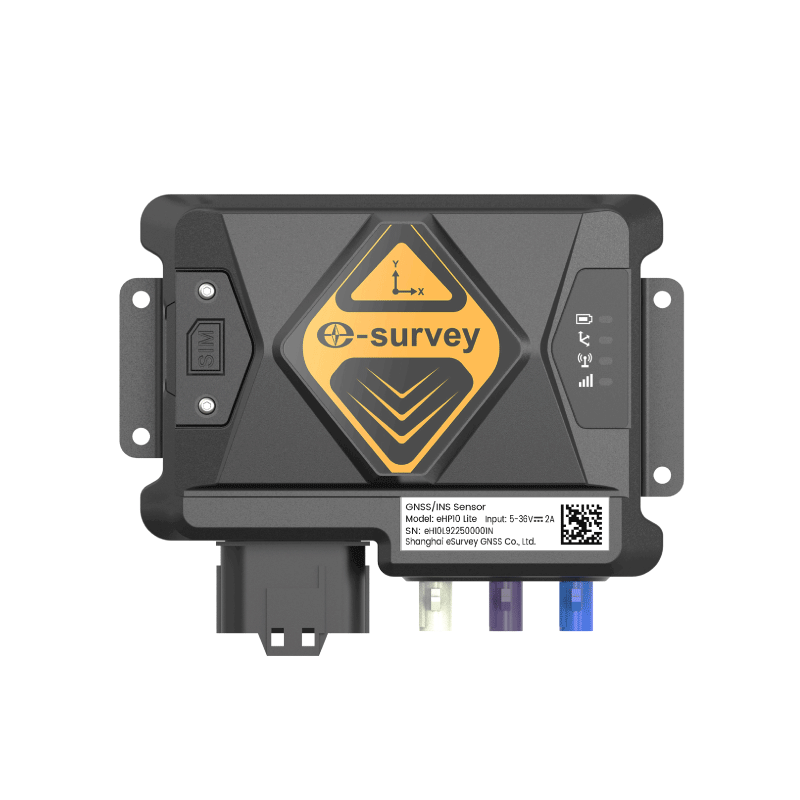

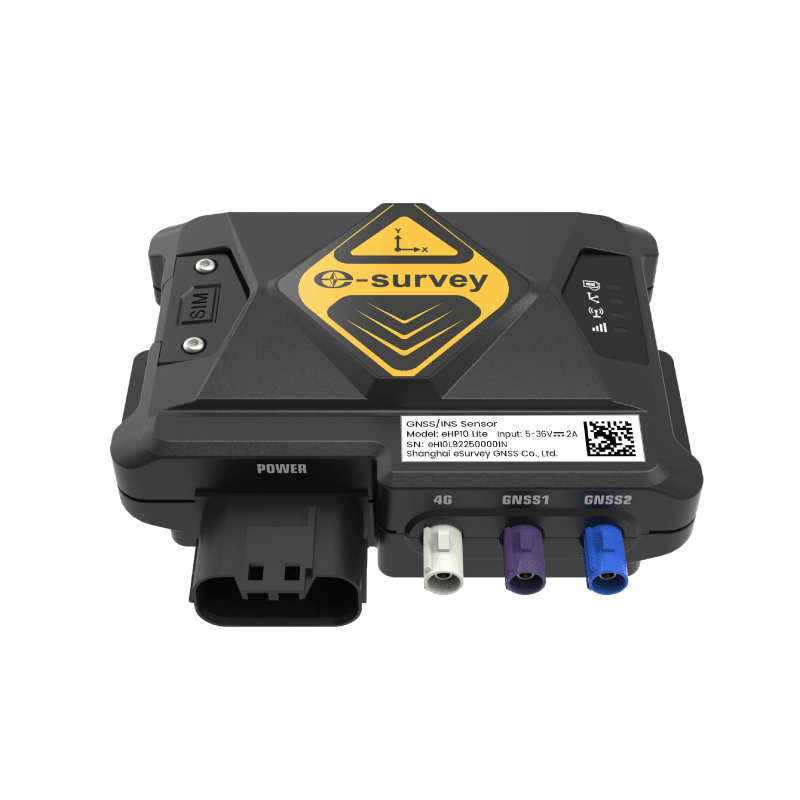

eHP10 Lite

eHP10 Lite

HIGH PRECISION GNSS/INS SENSOR

The eHP10 Lite is a high precision GNSS sensor designed by eSurvey to provide precise positioning and heading data by combining satellite positioning and inertial measurement technology. The eHP10 Lite has built-in MEMS gyroscope and accelerometer, which greatly improves the reliability, accuracy and dynamics of the system. In the case of cities, trees and other obstructions and multi-path interference with the environment, it can still provide stable data.Can be used in UAV, USV, machine control, marine, unmanned vehicles......

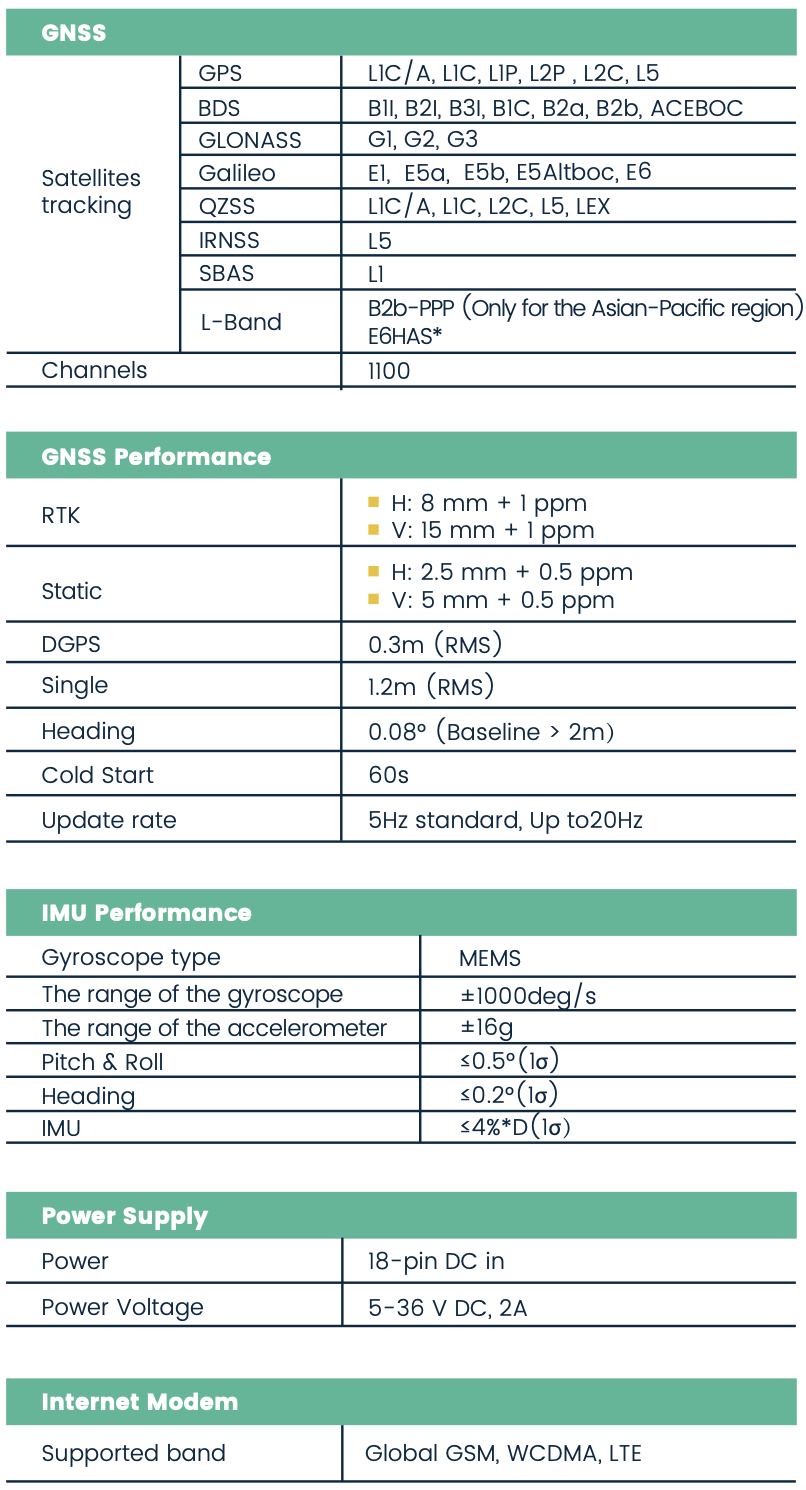

High Precision Heading and Positioning

Obtain all available and reliable data sources, with total channels and all signals (GPS, BDS, GLONASS, GALILEO, IRNSS and QZSS) of GNSS tracking.

Rugged Design: Designed for Harsh Environments

The eHP10 Lite is an industrial design, aluminum magnesium alloy hard shell, with good anti-vibration, anti-impact performance.

High Integrated Design

The eHP10 Lite built-in high-precision GNSS+MEMS modules, using a powerful combined inertial navigation algorithm, even in harsh environments, still can provide high reliability of data.

Ease to Use

The eHP10 Lite is small and light, easy to install, and adopts 5-36V wide voltage power supply design, supporting the vehicle cigarette lighter, safety box, and battery power supply.

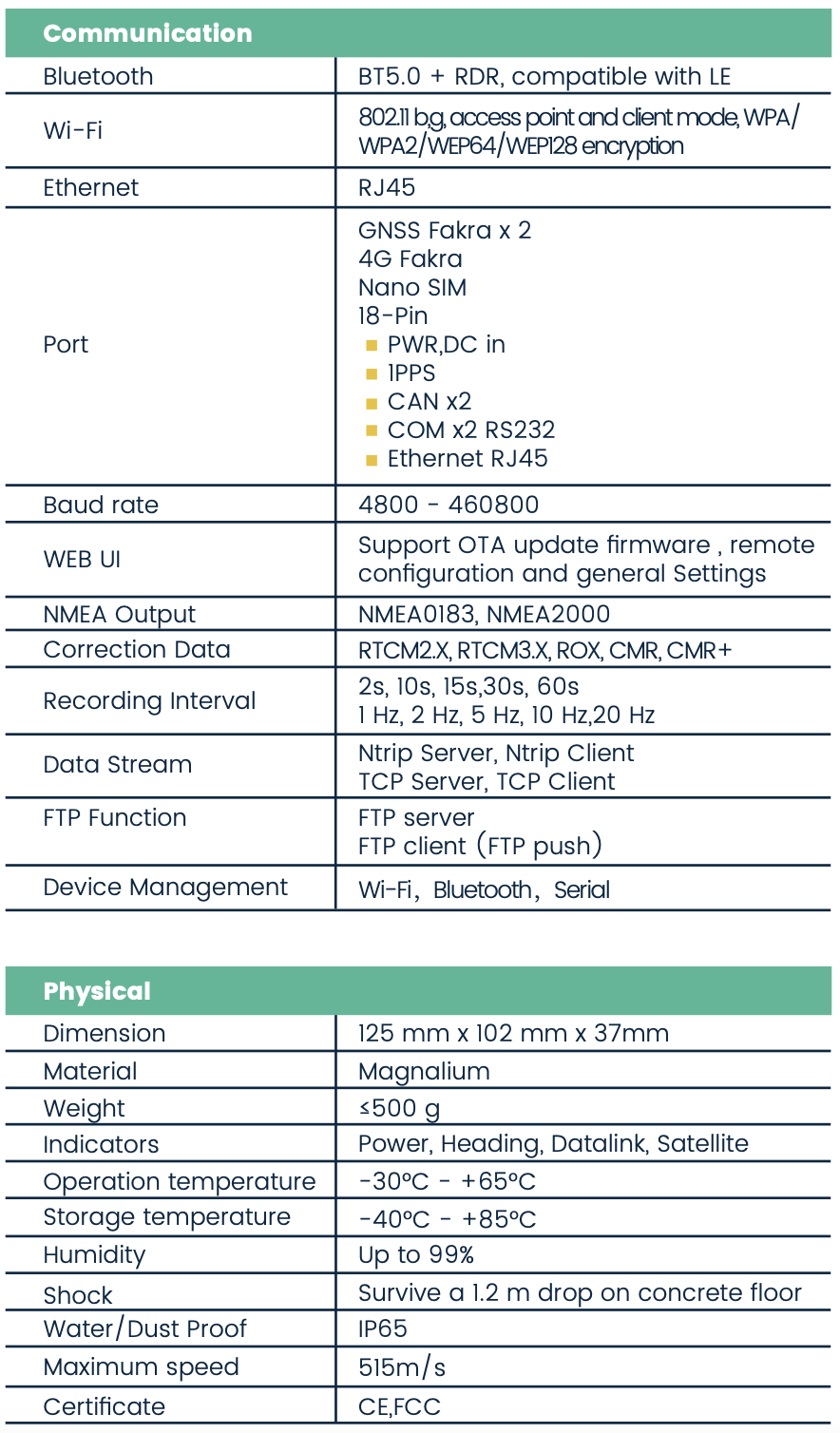

Rich Communication

Enjoy multiple methods of sending and receiving data, including 4G, Wi-Fi, Bluetooth, Ethernet,CAN, which offers more possibilities for communication.

Remote Control

The eHP10 Lite supports remote upgrade and remote control, facilitating unified device management.
